Thread Ring Gauge Manufacturers, Suppliers, Exporters in Pune

Our thread ring gauges are designed with accuracy, precision, and reliability in mind. We use only the highest quality raw materials and components to ensure that our Thread Gauges are accurate and precise.

We offer a wide selection of thread ring gauges in Pune a variety of sizes, threads, and materials. Our thread ring gauges are available in both inch and metric sizes and threads, and are used in a variety of industries, such as manufacturing, aerospace, automotive, and medical.

Specifications

Product Name	Thread Ring Gauge
Brand	Universal-Gauges Pvt. Ltd.
Thread Size (in mm)	2 – 300
Gauge Shape	Round
Material Type	Steel
Usage	Industrial

Introduction

A thread ring gauge is a measuring tool used to measure the outside diameter of pins, shafts, splines, fasteners, dowels, bolts, and other machined cylindrical parts. These gauges are usually cylindrical in shape and made of a strong material (usually tool steel) with a high precision (very high tolerance) hole in the center that acts as a gauge for the outer diameter of the part.

Ring gauges allow very quick inspection and quality determination of machined parts without the use of micrometers, vernier calipers, thickness gauges, or other measuring instruments that can take a long time to obtain results.

Types

From a functional point of view, there are three main types of ring gauges: -

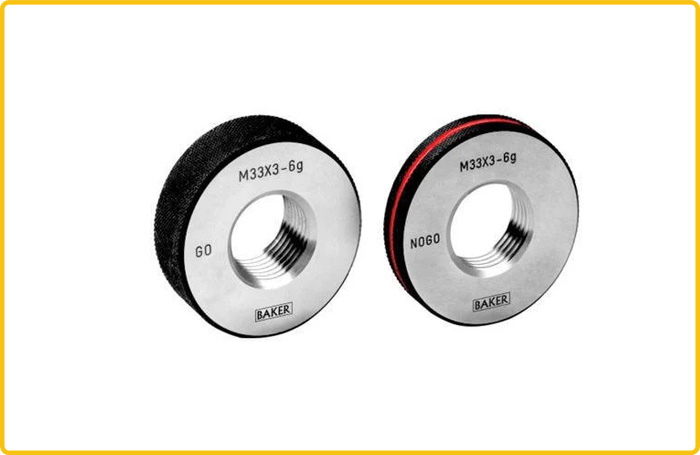

• Go ring gauge
• No go ring gauge
• Master or set gauge

Properties

There are several configurations of ring gauges that can be used to test different types of parts. Plain ring gauges are designed for testing shafts and cylindrical parts with plain inner diameters and no surface threads or serrations.

There are also thread ring gauges used to check parts that are threaded along the outer diameter. These gauges have threads that correspond to the inside diameter of the gauge to match the thread type and pitch of the part.

This feature extends the useful life of gauges and reduces manufacturing costs by allowing gauges that fall out of tolerance due to use or wear to be adjusted within tolerance and reused. There are also miniature thread ring gauges for use on small mechanisms such as watches.
