Metric Thread Gauges

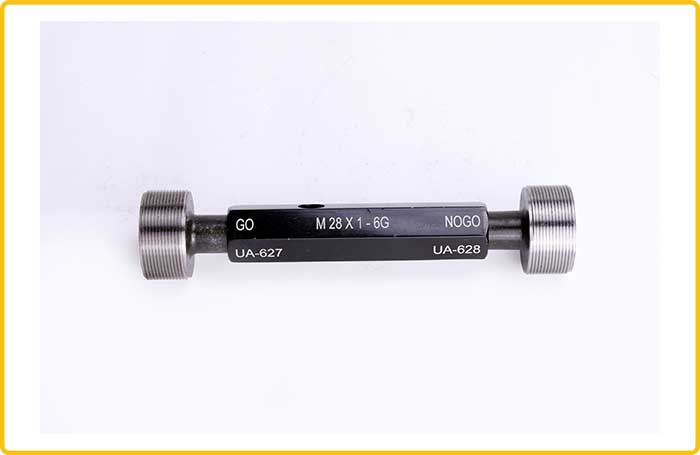

Universal-Gauges Pvt. Ltd. specializes in providing high-quality metric thread gauges in Pune. Our gauges are designed and manufactured using the latest technology to guarantee precision and accuracy. These are perfect for measuring threads of external and internal diameter, pitch diameter, and other thread parameters.
Indian Standard (IS)
- Basic dimensions :
IS 4218(3) - 1999
IS 4218(4) - 2001
- Gauging Practice : IS 2334-2001
CLASS OF FIT :
- Screw Plugs : 6H (medium)
- Screw Rings: 6g (Medium)
- Applicable for right hand threads.
International Organization For Standardization
- Basic dimensions : ISO 724-1993
- Gauging Practice : ISO 1502-1996, ISO 965/1-1998
- we manufacture metric gauges as per ANSI/ASME B1.16M, BS 3643, DIN 13, JIS
STANDARDS.
Prices on request
- Above 8" on request
- For non.std.dia.pitch combinations on request
Our metric thread gauge manufacturers have designed them to be robust and reliable, so you can be sure that you’re getting the most accurate measurements every time. These metric gauges are made of hardened steel, which makes them resistant to wear and tear, and are designed to provide accurate readings on a wide variety of thread sizes.
Our products are tested and calibrated to the highest standards to ensure accuracy and reliability. We also offer our customers a wide range of customization options to meet their specific needs.
| Size |
| Dia |
Pitch |
| M1.6 |
0.35 |
| M1.8 |
0.35 |
| M2 |
0.4 |
| 0.25 |
| M1.8 |
0.35 |
M2.2 |
0.4 |
| 0.25 |
M2.2 |
0.4 |
| 0.25 |
M2.3 |
0.40 |
| M2.5 |
0.45 |
| M2.6 |
| 0.45 |
| M3 |
0.50 |
| 0.35 |
| M3.5 |
0.60 |
| 0.35 |
| M4 |
0.70 |
| 0.50 |
| 0.75 |
| M4.5 |
0.75 |
| 0.50 |
| Size |
| Dia |
Pitch |
| M5 |
0.80 |
| 0.50 |
| 0.75 |
| M6 |
1.00 |
| 0.75 |
| 0.50 |
| M7 |
1.00 |
| 0.75 |
| 0.50 |
| M8 |
1.25 |
| 1.00 |
| 0.75 |
| 0.50 |
| M9 |
1.25 |
| 1.00 |
| 0.75 |
| 0.50 |
| M10 |
1.50 |
| 1.75 |
| 1.00 |
| 0.75 |
| 0.50 |
| Size |
| Dia |
Pitch |
| M11 |
1.50 |
| 1.00 |
| 0.75 |
| M12 |
1.75 |
| 1.50 |
| 1.25 |
| 1.00 |
| 0.75 |
| 0.50 |
| M14 |
2.00 |
| 1.50 |
| 1.25 |
| 0.75 |
| 0.50 |
| M15 |
1.50 |
| 1.00 |
| M16 |
2.00 |
| 1.50 |
| 1.25 |
| 1.00 |
| 0.75 |
| Size |
| Dia |
Pitch |
| M17 |
1.50 |
| 1.00 |
| M18 |
2.50 |
| 2.00 |
| 1.50 |
| 1.00 |
| M20 |
2.50 |
| 2.00 |
| 1.50 |
| 1.00 |
| M22 |
2.50 |
| 2.00 |
| 1.50 |
| 1.00 |
| M24 |
3.00 |
| 2.00 |
| 1.50 |
| 1.00 |
M25 |
3.00 |
| 2.00 |
| 1.00 |
