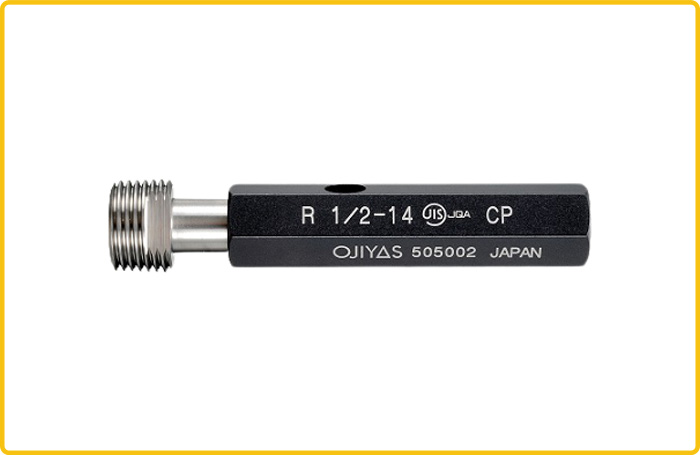

Taper Thread Plug Gauge in Pune/ Taper Thread Plug Gauge Manufacturers, Suppliers in Pune

We have been in the business since long years, and our commitment to quality and customer satisfaction has earned us the trust of our customers. Our Taper Thread plug are designed and manufactured to the highest quality standards. We use the latest technology and materials to ensure that our products are durable and reliable. These are used in a variety of industries such as automotive, aerospace, and medical.

Our Taper Thread plug gauges are used to check the tolerance of threaded parts to specific specifications. These highly specialized calibration tools are used to ensure mating assembly, providing quality control and compliance with standards.

Product Details:

Product Name	Taper Thread Plug Gauge
Brand	Universal-Gauges Pvt. Ltd.
Measuring range (in mm)	4 – 50
Country Of Origin	Made In India
Handle Design	Single Ended
Usage	Industrial

Description:

Taper Thread Plug Gauges are used to check the accuracy and dimensions of parts that require high tolerances and precision, such as those used in the medical, automotive, oil/gas and aerospace industries.

These taper lock gauges measure the dimensions of a part by passing or not through an internal thread. The Go side should engage and the Not Go (NoGo) side should not engage. This is known as a fixed limit measurement.

These gauges have a tapered shank behind the threads. These are tightly pressed into aluminum handles with matching tapered holes. You can insert new measurement elements into existing handles.

Hard chrome Properties

• All standard threaded plugs are supplied in hard chrome at no extra charge.
• Heat treated and cold treated for extreme stability.
• Wrapped for accuracy and durability.

Tolerance Classes of Taper Plug Gauge

Plug gauges are available in a variety of tolerance classes that can be selected according to specific application requirements and accuracy needs. They are usually categorized into the following levels: XXX represents the highest quality gauge with the tightest tolerances, with looser tolerances as the grading increases towards ZZ.

• XXX
• XX
• X
• Y
• Z
• ZZ
